Event-Driven Serverless Fraud Detection System

Financial platforms process enormous volumes of transactions and have to catch fraud the moment it happens, without slowing down legitimate payments. Batch systems are too slow, single-cloud setups risk downtime, and sensitive financial data demands strict encryption and a complete audit trail. Blyskode designed and built an event-driven, serverless fraud detection system that solves all four at once.

The challenge

• Detect fraudulent transactions in real time, at scale, without adding latency to good payments.
• Stay resilient — no single cloud provider should be a single point of failure.
• Keep every transaction encrypted and produce an auditable record for compliance.
• Scale elastically with unpredictable transaction volume while controlling cost.

The architecture

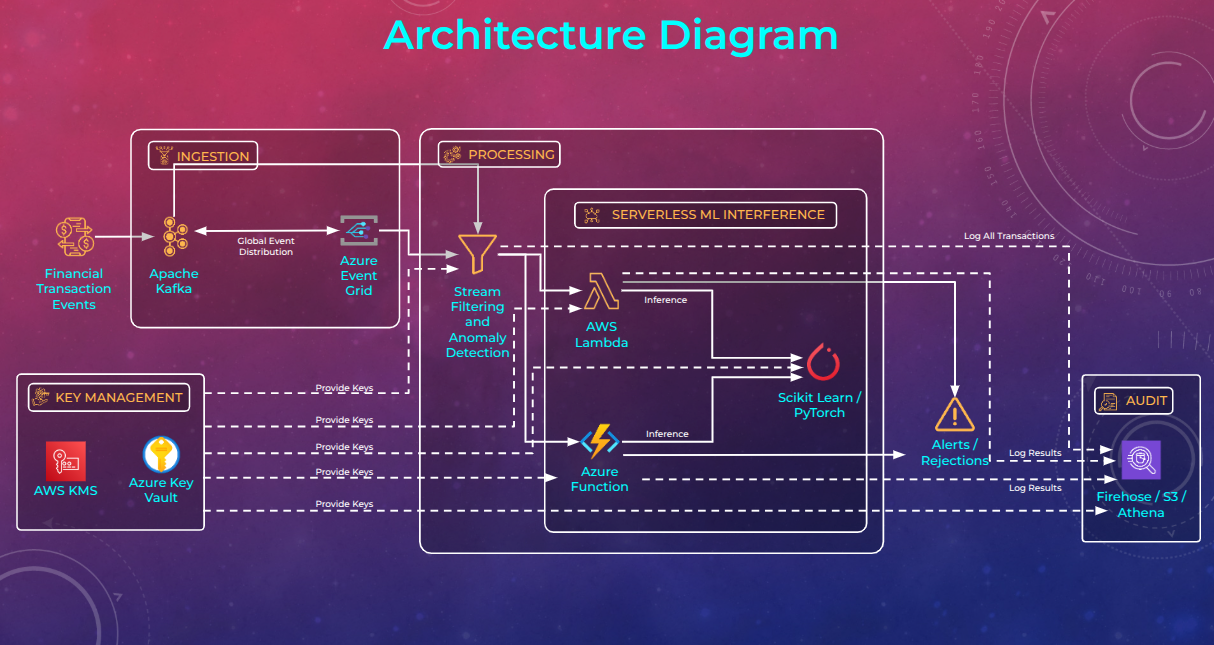

Here is the full system. Every transaction flows from ingestion through serverless ML inference to a decision and an audit log, spanning both AWS and Azure.

How it works

1. Ingestion. Financial transaction events stream into Apache Kafka, which handles global event distribution. Azure Event Grid fans those events out across regions and clouds, so every downstream service receives them with low latency.

2. Stream processing. A processing layer performs stream filtering and anomaly detection, surfacing the transactions that look unusual and routing them into the inference pipeline.

3. Serverless ML inference. Each flagged event triggers AWS Lambda and Azure Functions in parallel, each running machine learning models built with Scikit-learn and PyTorch to score the transaction for fraud. Because the inference is serverless, it scales automatically to any spike in volume and costs nothing while idle.

4. Decisioning. Model inference produces real-time alerts or rejections for suspicious transactions, so fraud is stopped before it settles.

5. Key management. AWS KMS and Azure Key Vault supply encryption keys to every component in the pipeline, keeping sensitive financial data protected end to end.

6. Audit and logging. Every transaction and its outcome is streamed through Kinesis Firehose into Amazon S3 and made queryable with Amazon Athena, giving a complete, compliant audit trail that analysts can search at any time.

Why this design

• Real-time: event-driven serverless inference scores transactions in milliseconds.
• Multi-cloud: running across AWS and Azure removes single-vendor risk and improves resilience.
• Elastic and cost-efficient: serverless scales with load and you only pay for what actually runs.
• Secure and auditable: managed key vaults plus full logging meet the security and compliance bar financial data requires.

The outcome

The result is a production-grade blueprint for catching fraud the instant it happens — one that scales elastically with transaction volume, stays resilient across two clouds, and keeps a complete, encrypted, auditable record of every decision. It is the kind of AI-and-cloud system Blyskode builds end to end, from architecture to deployment.
